Switch

So far, so good, we have now 2 working mods for the clock module.

• The first one is an Astable Clock, which means the clock pulse is stable in time and we can change the speed with a potentiometer.
• The second mod is a Monostable Clock, which means that the clock pulse is always in one stable state, the “unpressd” state.

The final mod using a 555 time is a Bistable Clock, we are going to switch between Astable and Monostable using a Switch.

Bouncing Problem

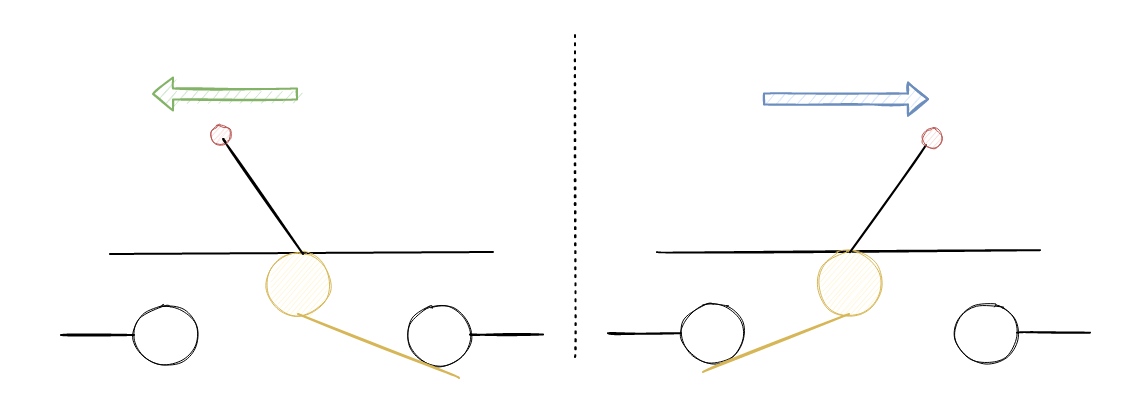

Here is a simple example of what we could use to switch the output between the two mods

Debouncing - 555 Timer

Like before we can use the 555 timer for the bouncing problem, more precisely we are going to use SR Latch as a debouncing device.

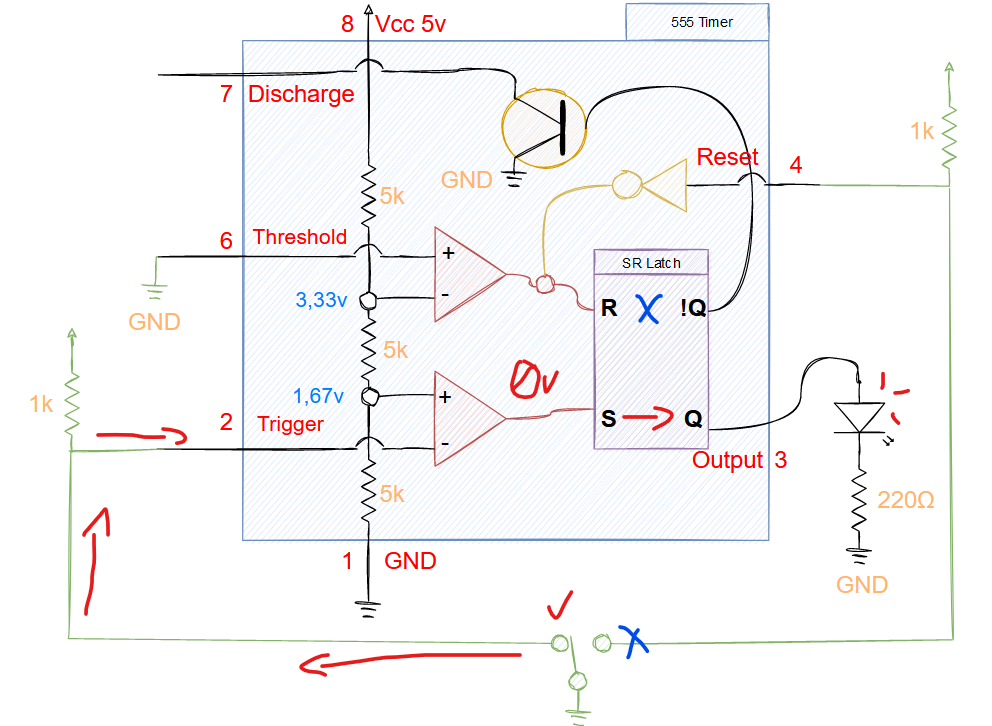

S Pin ON

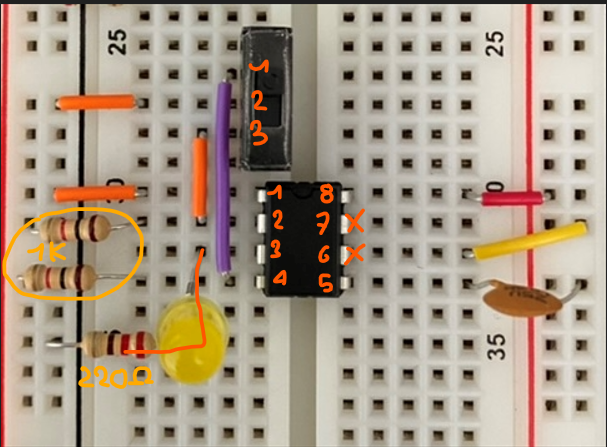

So, as we can see we don’t need PIN 6 and 7. Instead, we are going to use PIN 4 which is used to RESET SR Latch.

When the S is ON, the Switch will input 0v into the S so the LED will be ON.

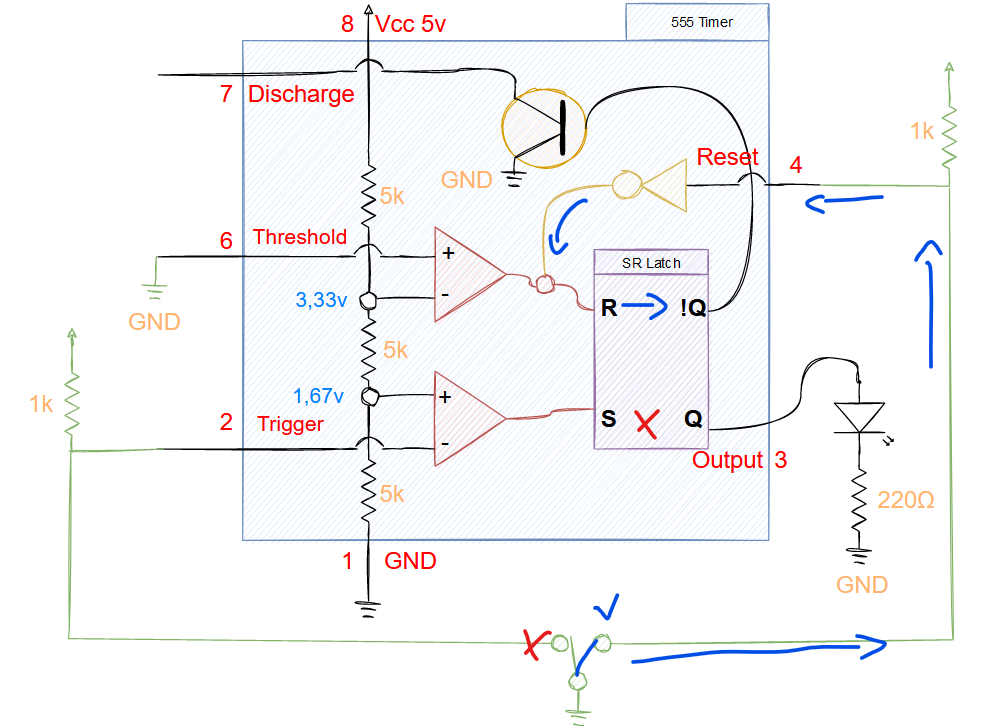

R Pin ON

On the other hand, the RESET pin is used when the switch is OFF on it (GND) will trigger the R PIN on SR Latch and the LED will be OFF

Final Switch

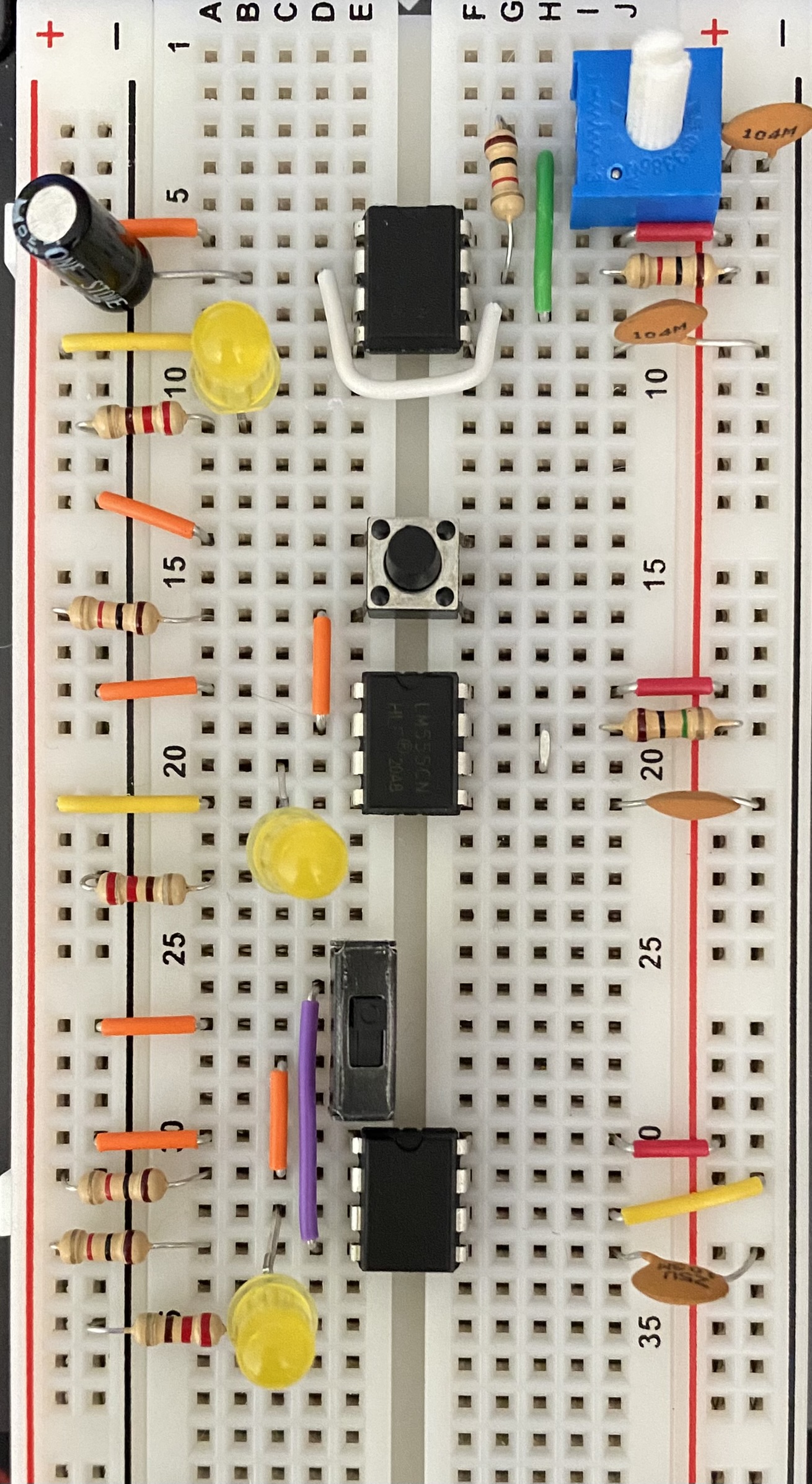

Here is the final part of the Bistable mod of this clock.

Next Part

In the next part, we are going to set up the Logic part of this switch so it will be related to the output of both previous mod.
