Improper handling of electronic components can lead to component destruction

Here is my LinkedIn post related to this article : LinkedIn-Post

What you need

Here are all the tools you need to perform this kind of IoT Assessment on a device. For my part I didn’t have my soldering kit so I did it without but it was not very stable.

• Basic knowledge on UART ad IOT Hacking
• UART Bridge (Simple USB or Flipper Zero)
• Multimeter
• Cables
• Solder Iron (Optionnal)
• UART Device like Wifi Router

UART ?

If you are not familiar with UART ports, I would recommend you to check my article on Flipper-Zero Section UART USB Bridge

If this is not enough, check out this video of FlashBack-Team Hacker’s Guide to UART Root Shells

TP-Link AC750

Informations

The device I used was a TP-Link Wifi Router AC750

• Supports 802.11ac standard - the next generation of Wi-Fi
• Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth
• 3 external antennas provide stable omnidirectional signal and superior wireless coverage

While doing OSINT on the device, you can easly found internal and externl picture of it.

• https://fccid.io/TE7C20
• Internal Pictures

Each WIFI device has a FCC ID which is very usefull to search specs and internal pictures.

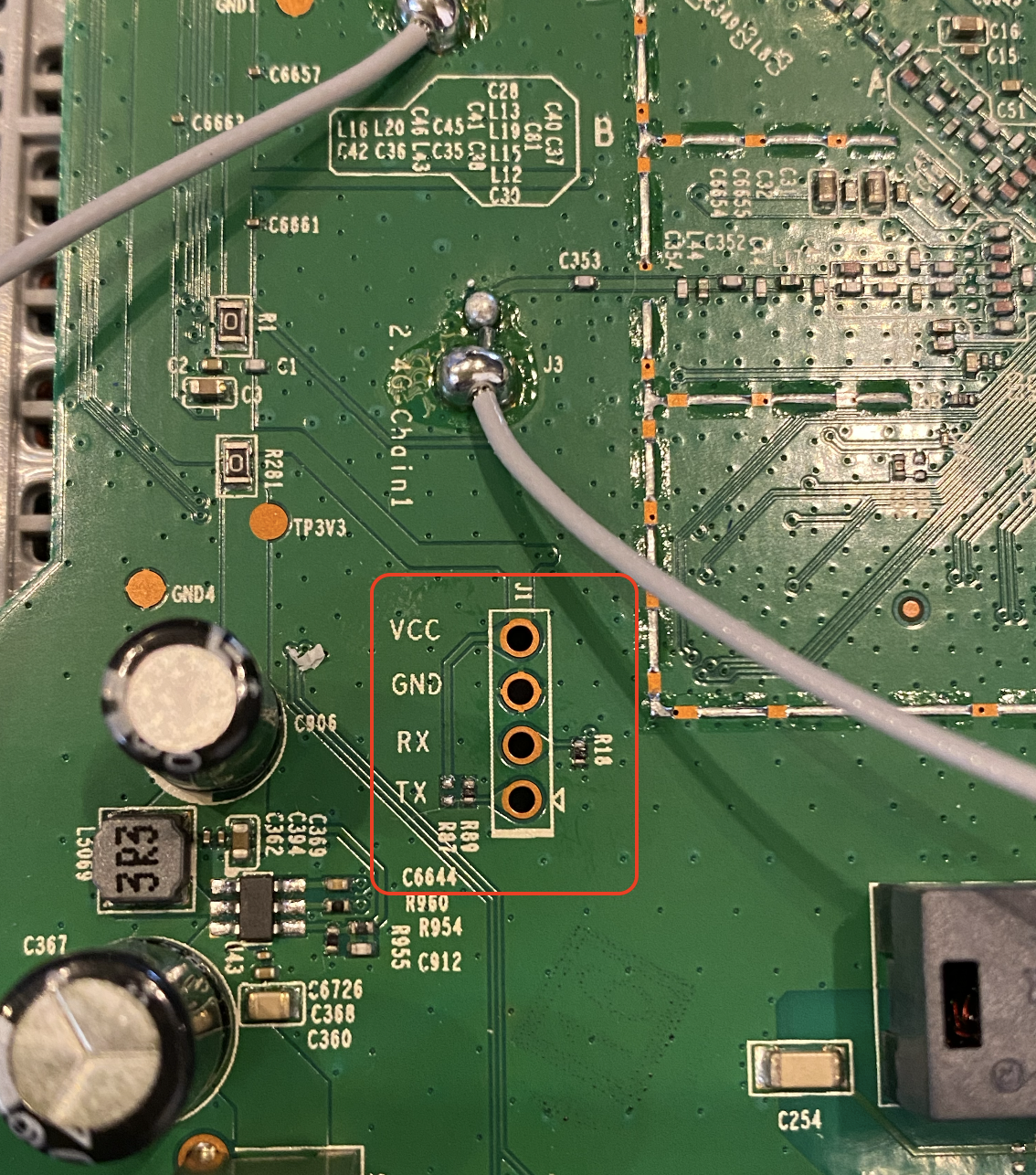

UART port

I was lucky on this one since the UART ports are labeled, so no need to test them with multimeter

Components

• Wifi Chip - MT7628an
  • Datasheet
• DDR SDRAM - M14D5121632A
  • Datasheet
• Wifi Chip - MT7610EN
  • Datasheet
• Flash - 25Q64CSIG (Back of the PCB)
  • Datasheet

UART Bridge USB

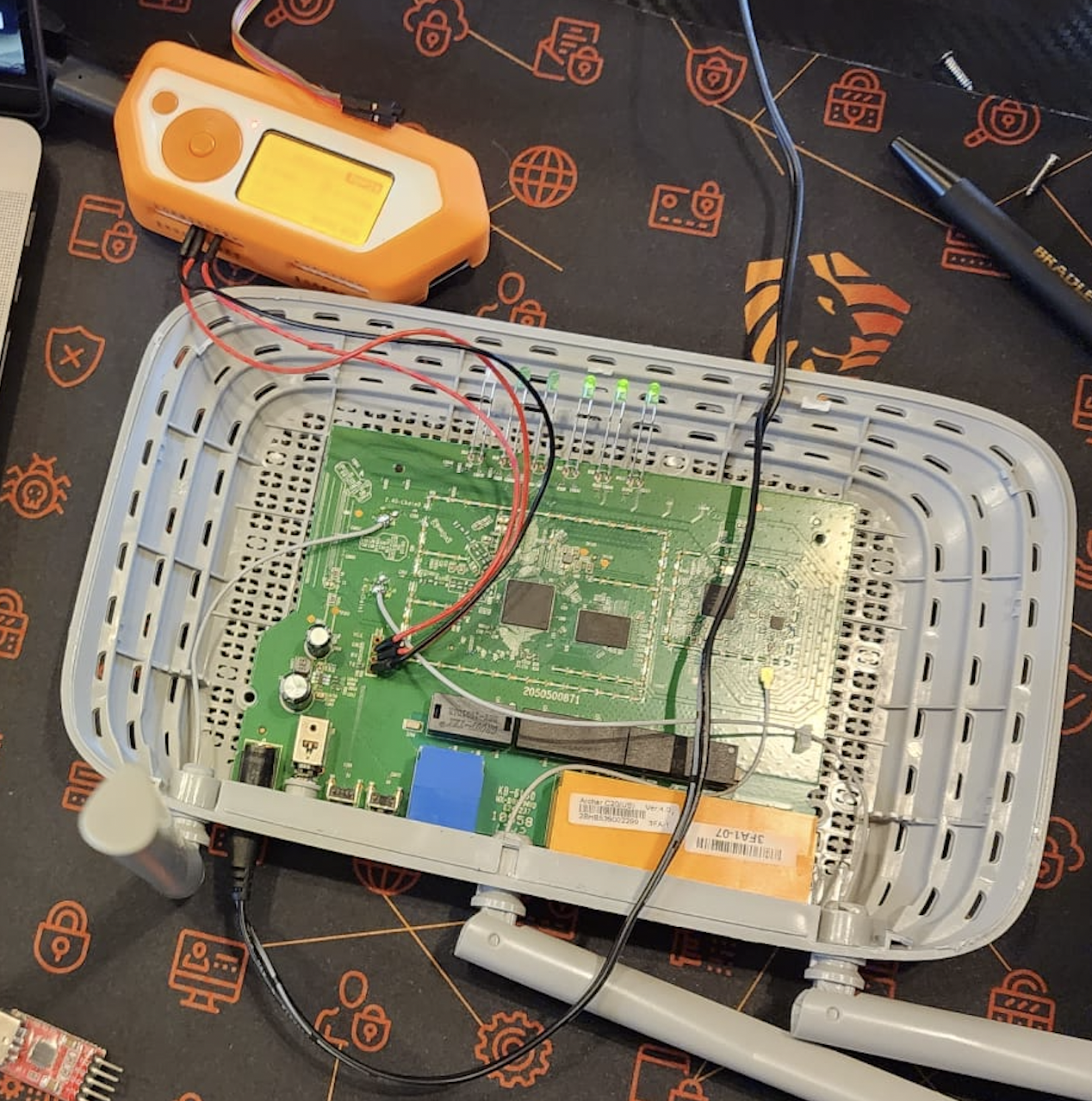

Here is what my setup looks like. Like you can see I didn’t use any soldering Iron because I didn’t have one during this time.

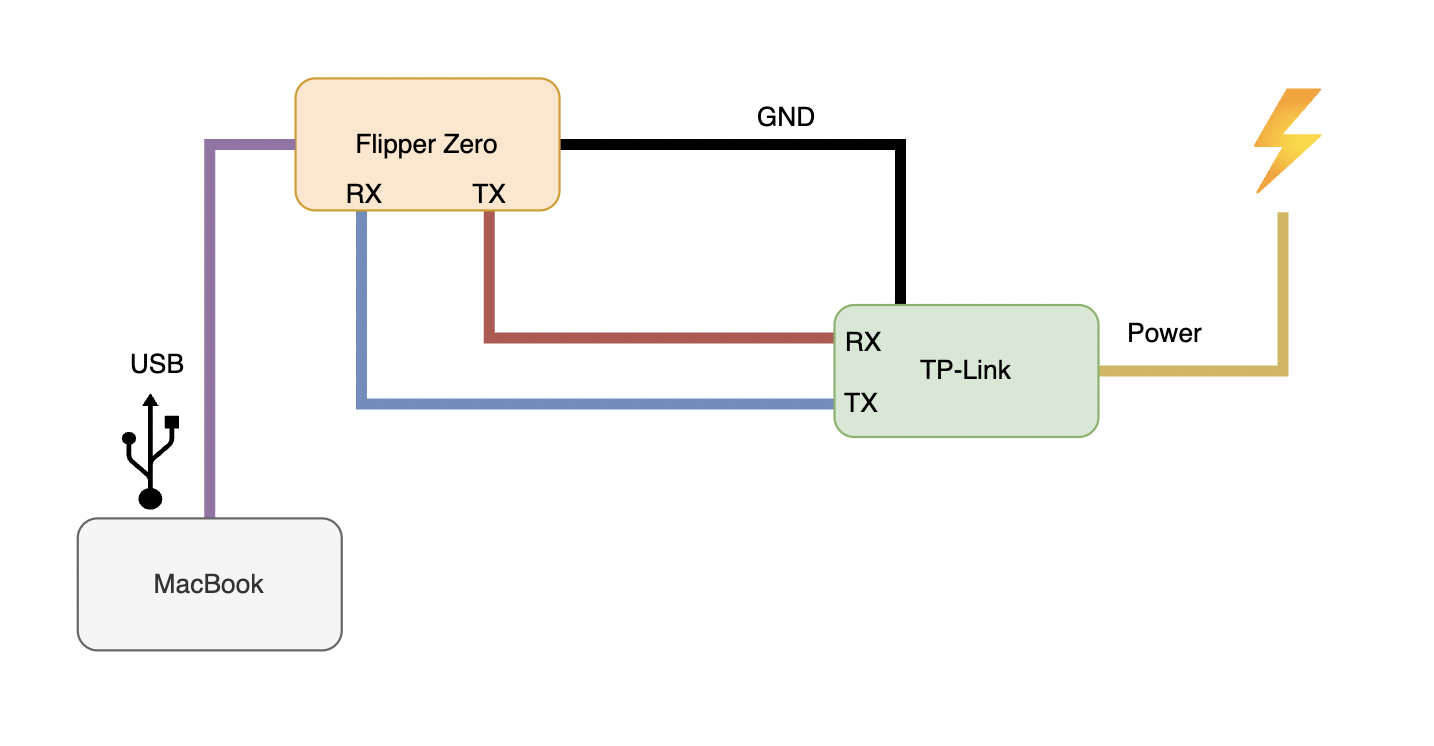

The UART bridge is very simple, here is a small schemas :

I’ll recommand you to check my post about this part : UART USB Bridge

Using minicom we can get a shell once the device is powered on !

Shell and Enumeration

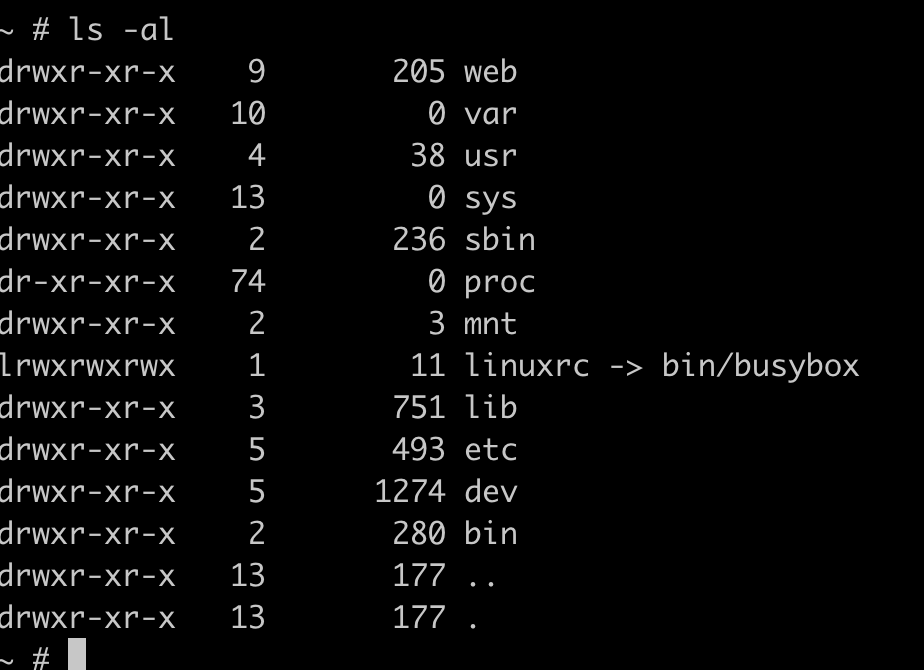

Let’s start the enumeration part on the device.
Just for the context I didn’t have any password for this Wifi router, SSID passwords and Admin Web password.

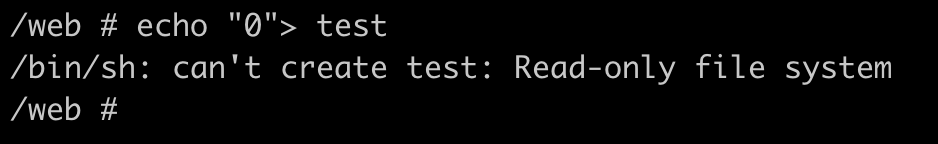

The system is on read only so we can’t edit anything unfortunatly.

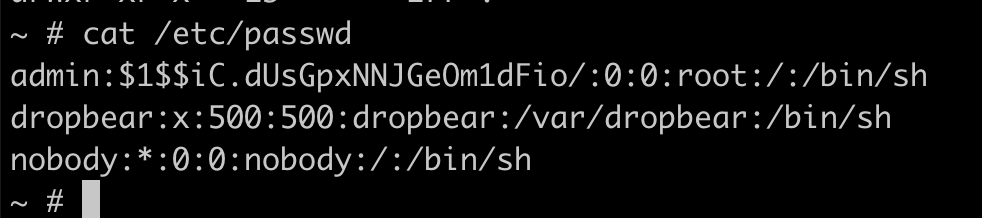

/etc/passwd

The first goodies we can get is the users and the passwords of the system.

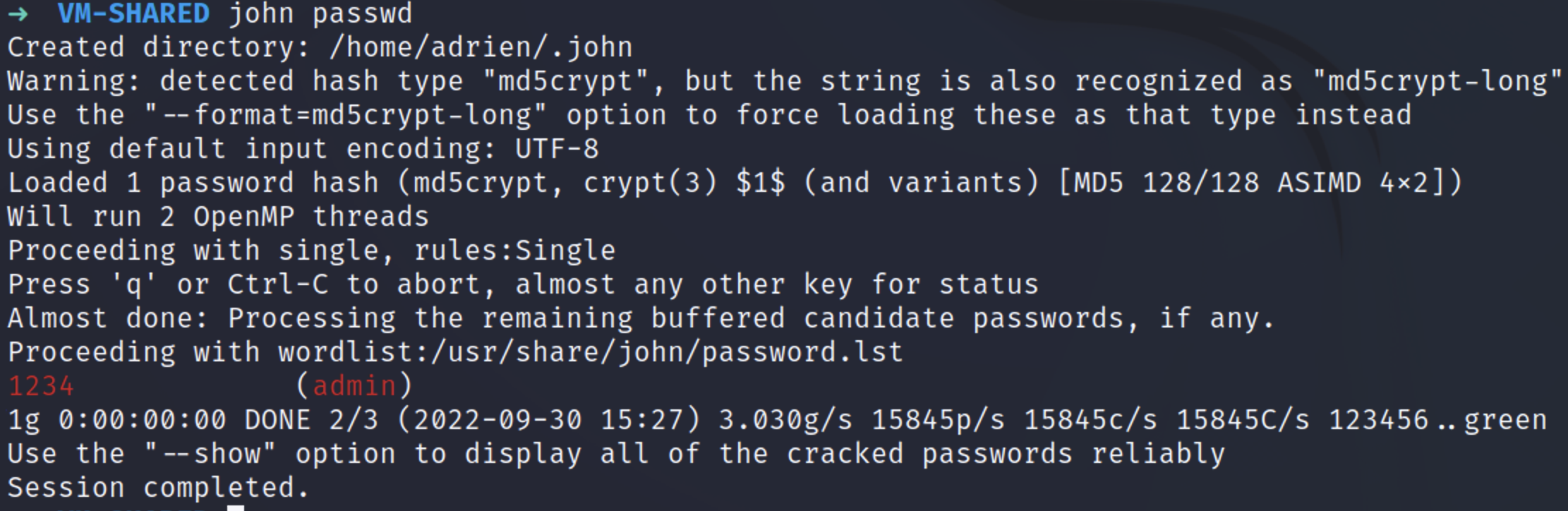

The admin user has its hash on the passwd file and is easly crackable

• admin:1234 –> root account

We can guess that there is a dropbear for SSH Service because of the username but also during the boot of the device, it geneate new RSA keys.

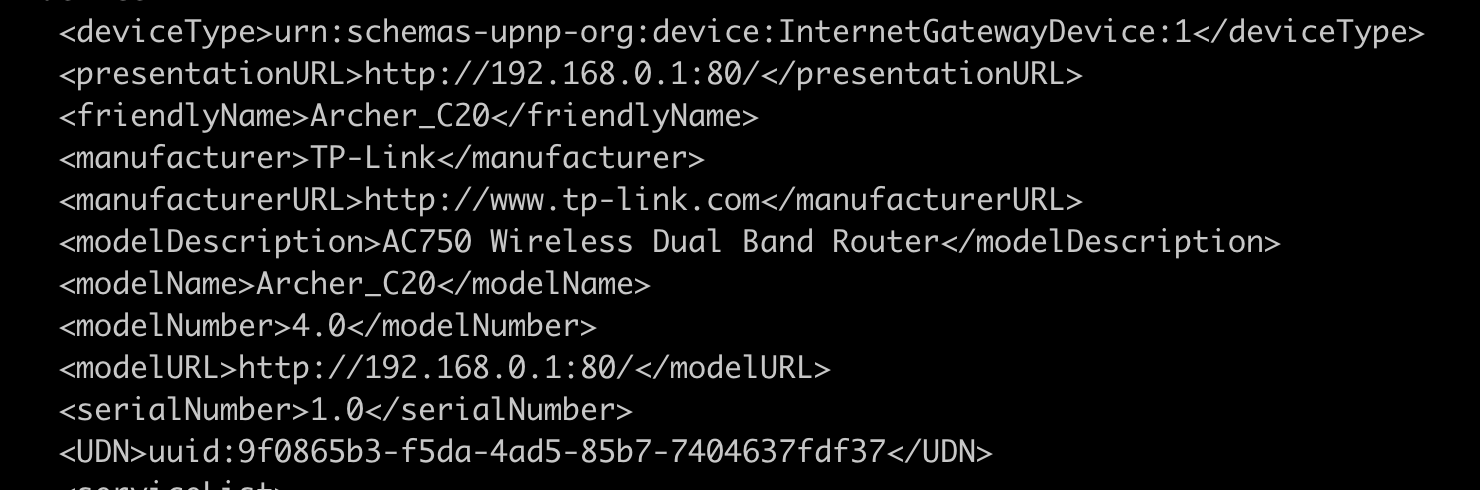

Device information

During my enumeration I could find more precise information about the device.

SSID Password

After a while I was able to locate the SSID information and retreive the passwords.

Here is the PATH where to find the password stored in clear text :

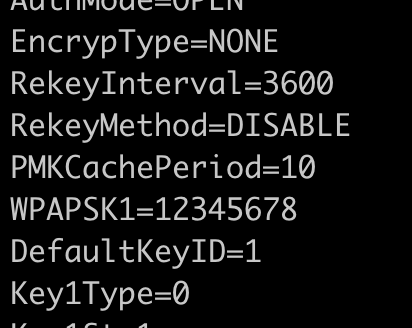

Here is the default SSID password which is 12345678, classic.

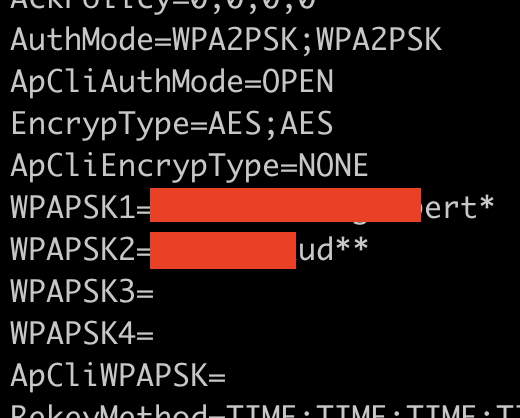

And finally the Password of the SSID that is currently in use on the device.

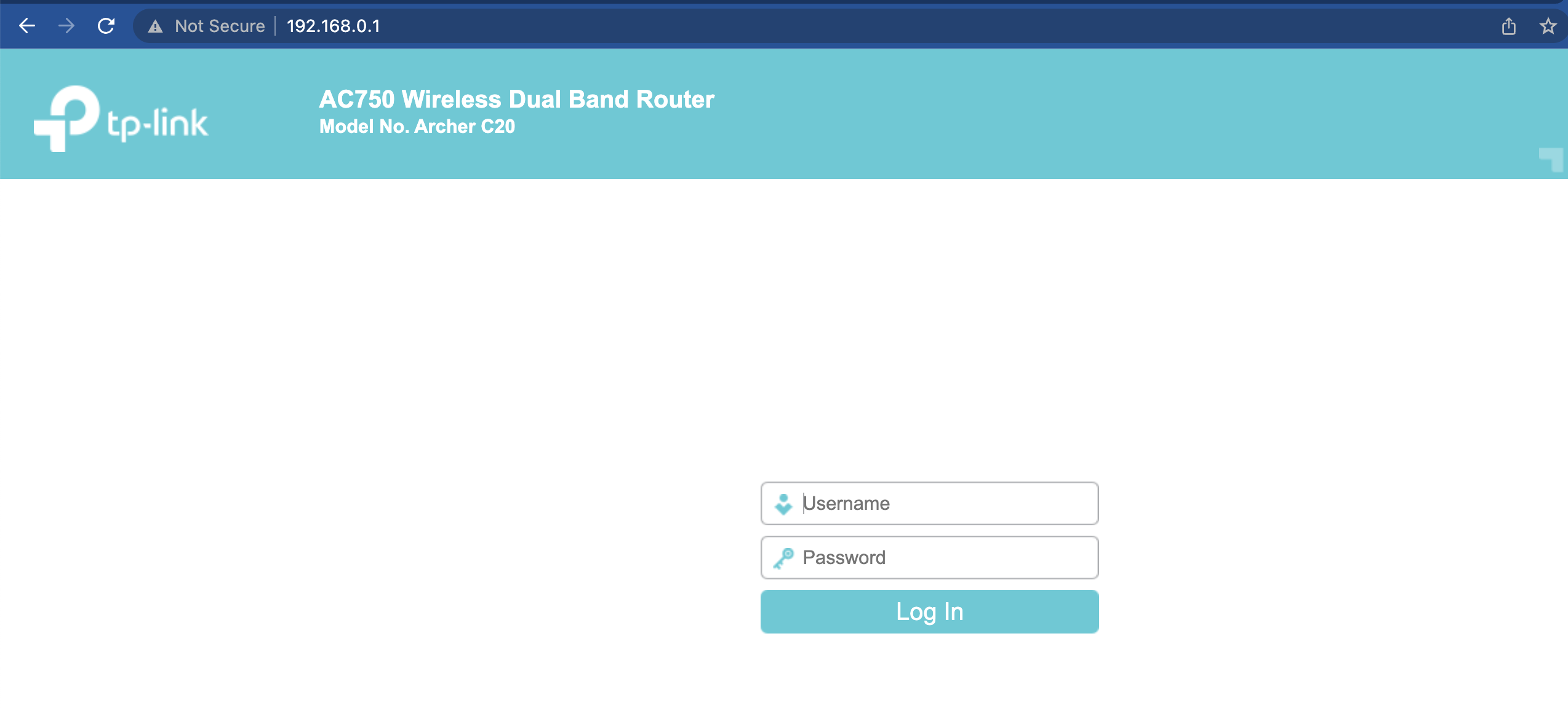

Admin Panel

Since I now have access to the Wifi network I can now get access to the Admin Panel but unfortunatly I need to find a way to grab the admin password !

Next time i’ll dig into the admin panel and find maybe a way to get inside (Hardcoded password ?)

See ya !
